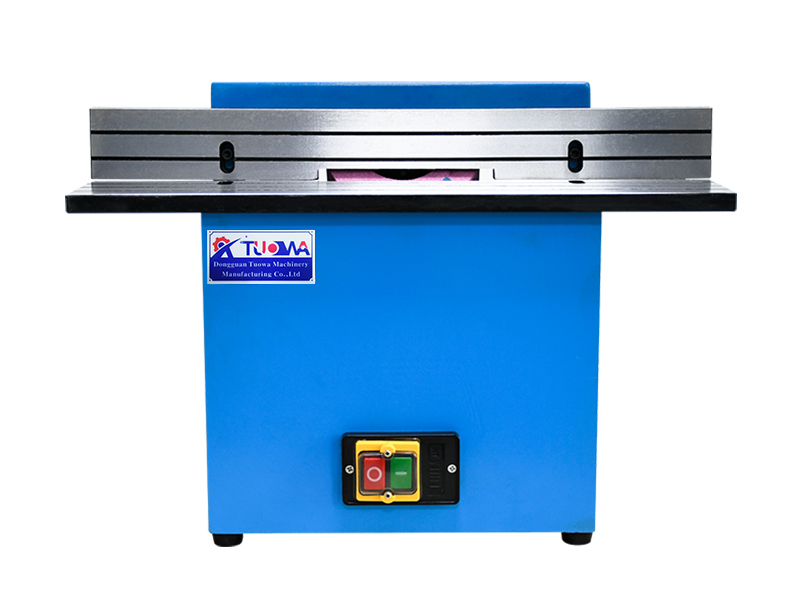

Machine performance characteristics:

1. This machine adopts the basin type grinding wheel for grinding and cutting, which can be applied with or without heat treatment: 2. The chamfer surface is fine, without rough edges, like a cross grinding surface; 3. Suitable for chamfering of various small moulds, small moulds and mechanical parts: 4. Cut the workpiece from left to right against the slide rail during operation; 5. The slide rail is made of high-quality die steel and is durable after heat treatment. Simple operation, regular chamfering, convenient adjustment, economic and reliable, and the efficiency is 10~15 times of that of traditional equipment. The rapid machine chamfering is the development trend of the machinery industry. Suitable for batch processing of small workpieces, mold, mold base chamfering, metal plate processing, machine and equipment manufacturing, etc. It is widely used in steel, steel structure, mold, mold base, metal processing, hardware parts manufacturing and other industries.

Specifications

Model: TW-400/500

Workbench size: 500 * 100 * 15MN Chamfer adjustment angle range: 45 ° Voltage: 220V 380V

Power: 550W

Workbench length: 500MM

Chamfer depth: 0-6MM

Blade size: 12.7 * 12.7 * 3.18 Square blade grinding wheel size: φ 125X φ thirty-five × 50 thick

Weight: 48KG
